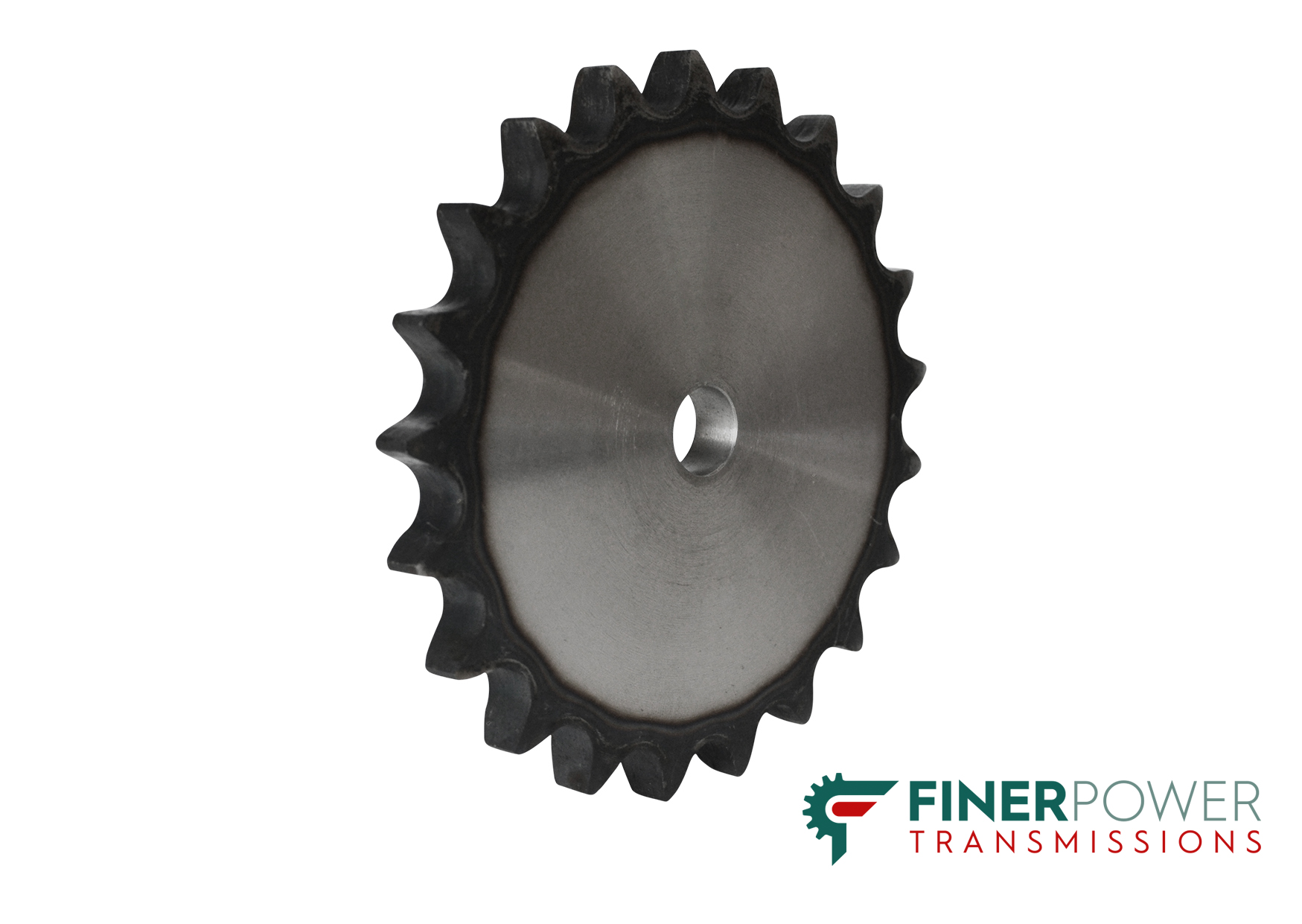

ASA Plate Wheels
Simplex plate wheels for ASA (ANSI) roller chain in sizes 40 – 60 – 80 and 100. 13 to 76 teeth. Flat plate with a pilot bore – ready to bore out or weld to a hub.
Showing 1–24 of 41 results
Images are for illustrative purposes only. Actual product may vary.
-
100A-13
Finer PT 100A-13 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 13 Teeth
20 mm × 148 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-14
Finer PT 100A-14 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 14 Teeth
20 mm × 158 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-15
Finer PT 100A-15 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 15 Teeth
20 mm × 168 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-16
Finer PT 100A-16 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 16 Teeth
20 mm × 179 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-17
Finer PT 100A-17 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 17 Teeth
20 mm × 189 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-18
Finer PT 100A-18 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 18 Teeth
20 mm × 199 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-19
Finer PT 100A-19 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 19 Teeth
20 mm × 209 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-20
Finer PT 100A-20 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 20 Teeth
20 mm × 220 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-21
Finer PT 100A-21 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 21 Teeth
20 mm × 230 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-22
Finer PT 100A-22 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 22 Teeth
20 mm × 240 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-23
Finer PT 100A-23 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 23 Teeth
20 mm (ID)
Finer PTProduct successfully added to the Quote List
-
100A-24
Finer PT 100A-24 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 24 Teeth
20 mm × 260 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-25
Finer PT 100A-25 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 25 Teeth
20 mm × 270 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-26
Finer PT 100A-26 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 26 Teeth
20 mm × 281 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-27
Finer PT 100A-27 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 27 Teeth
20 mm × 291 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-28
Finer PT 100A-28 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 28 Teeth
20 mm × 301 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-29
Finer PT 100A-29 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 29 Teeth
20 mm × 311 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-30
Finer PT 100A-30 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 30 Teeth
26 mm × 321 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-32
Finer PT 100A-32 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 32 Teeth
26 mm × 341 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
100A-38
Finer PT 100A-38 Plate Wheel – ASA 100-1 Simplex – 1-1/4″ Pitch – 38 Teeth
26 mm × 402 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
40A-15
Finer PT 40A-15 Plate Wheel – ASA 40-1 Simplex – 1/2″ Pitch – 15 Teeth
10 mm × 67.2 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
40A-21
Finer PT 40A-21 Plate Wheel – ASA 40-1 Simplex – 1/2″ Pitch – 21 Teeth
14 mm × 91.3 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
40A-42
Finer PT 40A-42 Plate Wheel – ASA 40-1 Simplex – 1/2″ Pitch – 42 Teeth
16 mm × 176.6 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
-
40A-48
Finer PT 40A-48 Plate Wheel – ASA 40-1 Simplex – 1/2″ Pitch – 48 Teeth
20 mm × 200.8 mm (ID × OD)
Finer PTProduct successfully added to the Quote List
Showing 1–24 of 41 results
