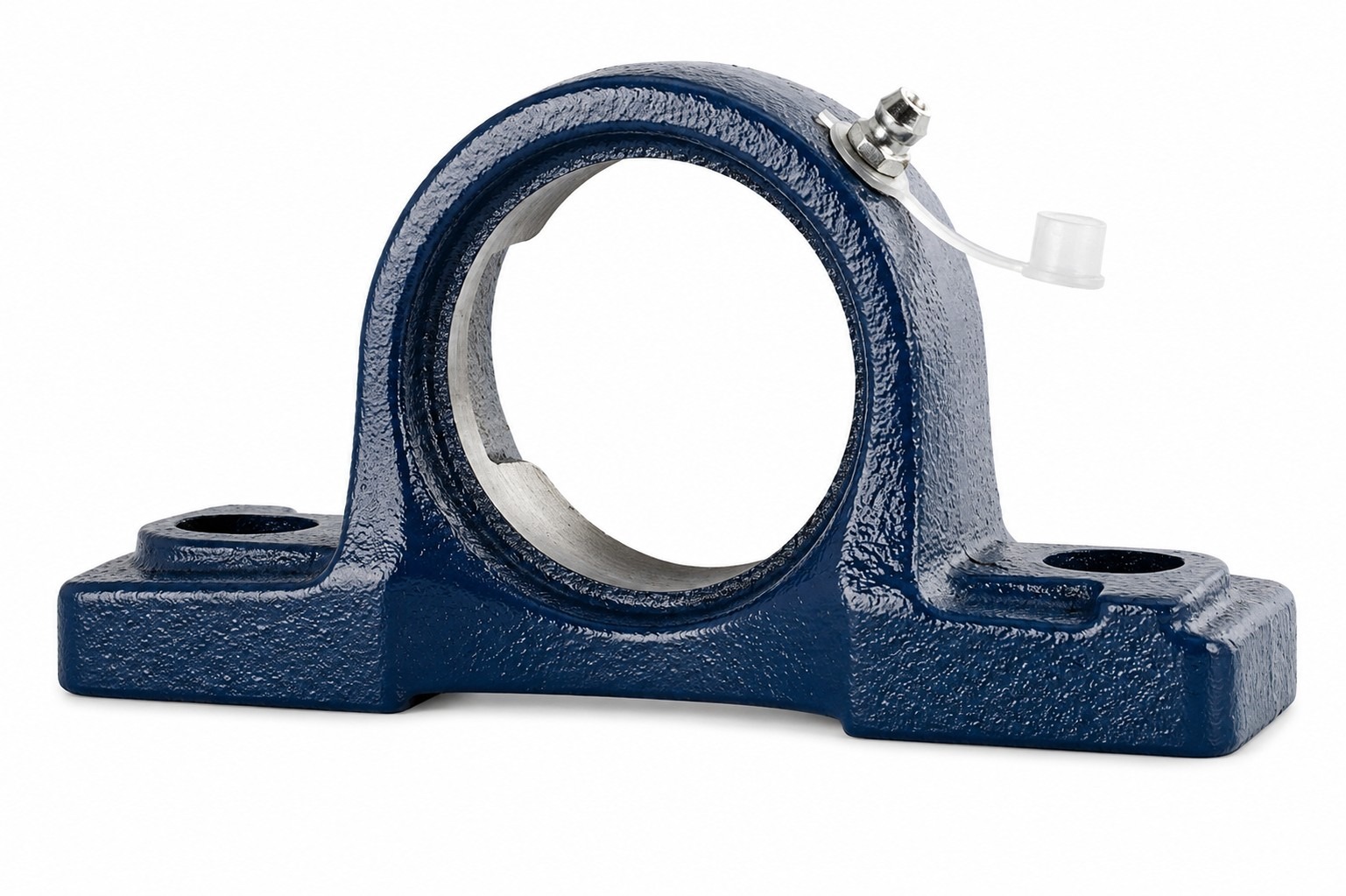

FYH PX09 Pillow Block Housing
FYH PX09 cast iron pillow block housing. Suits 45mm shaft. Centre height 58.7mm, length 222mm, bolt centres 156mm.
Product successfully added to the Quote List
- Accepts FYH insert bearings
- Cast iron pillow (plummer) block housing
- Foot-mounted base with two bolt slots
- Manufactured by FYH to JIS standards
- Supplied as housing only, insert ordered separately
| Brand | FYH |
|---|---|
| Bearing Type | Pillow Block Housing |
| Series | PX00 |
| Housing Type | Pillow Block (X-Series) |
| Material | Cast Iron |
| Shaft Size | 45 mm |
| Height to Centre (H) | 58.7 mm |
| Overall Length (L) | 222 mm |
| Base Width (A) | 67 mm |
| Bolt Hole Centres (J) | 156 mm |
| Bolt Size | M16 |
| Features & Benefits | Accepts FYH insert bearings Cast iron pillow (plummer) block housing Foot-mounted base with two bolt slots Manufactured by FYH to JIS standards Supplied as housing only, insert ordered separately |
FYH PX09 Pillow Block Housing
The FYH PX09 is a cast iron pillow (plummer) block housing for a 45mm shaft bearing. Centre height 58.7mm, overall length 222mm, base width 67mm, bolt hole centres 156mm, overall height 116mm, insert width 51.6mm, bolt size M16.
Supplied as a housing only – the insert bearing is ordered separately. Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
