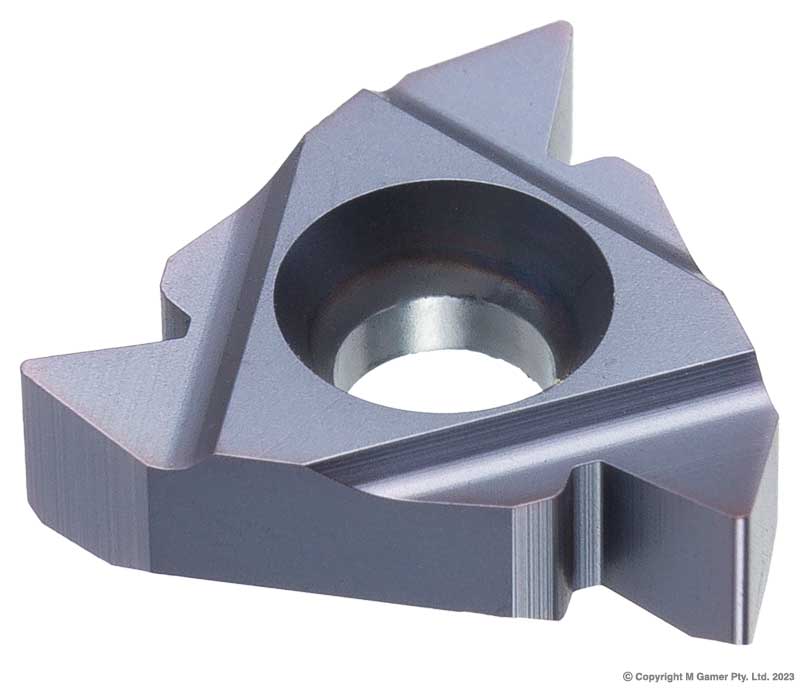

Harlingen 16ERAG60 TiAlN Coated Carbide Threading Insert – 16ERAG60
Harlingen 16ERAG60 TiAlN Coated Carbide Threading Insert – 16ERAG60. Cutting direction Right Handed – thread profile 60 deg External – thread range 0.5 – 3.0 mm.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Carbide Inserts |
| Measurement System | Metric |
| Weight | 0.06 kg |
| Cross Reference | Gamer: 16ERAG60 | Barcode: 9346967106661 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The 16ERAG60 is a TiAlN Coated Carbide Threading Insert – 16ERAG60.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Made of micro-grain carbide with TiAlN coating
For machining of cast iron, steel and stainless steel
Sold in packs of 10
- Cutting Direction: Right Handed
- Thread Profile: 60 deg External
- Thread Range: 0.5 – 3.0 mm
- Insert Size: IC 9.525 mm
Manufactured by Harlingen and imported into Australia by Gamer.
