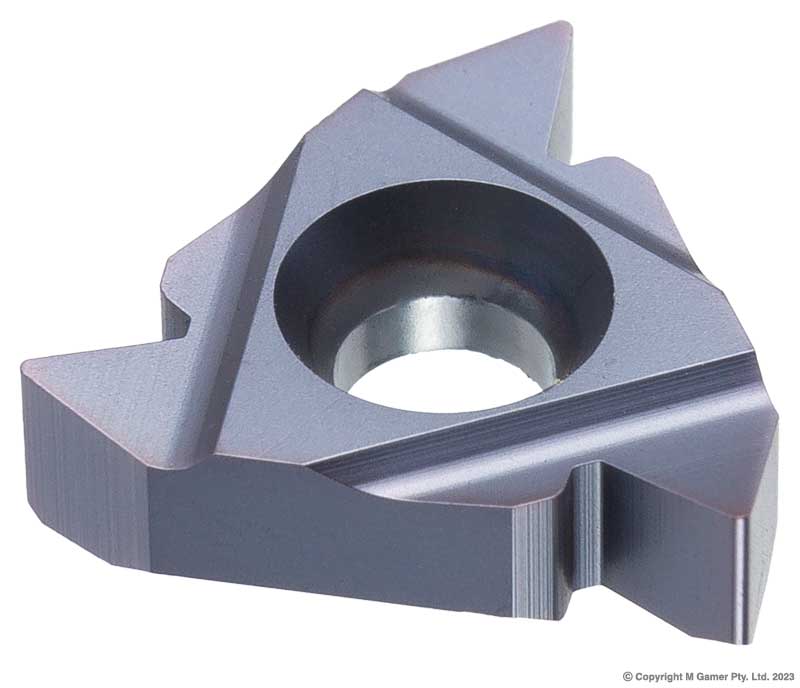

Harlingen 16ERG60 60deg x 1.75~3.0mm Right Handed External TiAlN Micro – Grain Carbide Threading Insert – Pack of 10
Harlingen 16ERG60 60deg x 1.75~3.0mm Right Handed External TiAlN Micro – Grain Carbide Threading Insert – Pack of 10. Thread profile External 60 deg – thread range 14-8 TPI – cutting direction Right Hand.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Carbide Inserts |
| Measurement System | Metric |
| Pack Type | Multi pack |
| Cross Reference | Gamer: 16ERG60 | Barcode: 9346967106678 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The 16ERG60 is a 60deg x 1.75~3.0mm Right Handed External TiAlN Micro – Grain Carbide Threading Insert – Pack of 10.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Micro-grain carbide with TiAlN coating.
General purpose used for steel, stainless steel and cast iron
Sold in packs of 10
- Thread Profile: External 60 deg
- Thread Range: 14-8 TPI
- Cutting Direction: Right Hand
- Insert Size: IC 9.525 mm
- ISO: 16ERG60
Manufactured by Harlingen and imported into Australia by Gamer.
