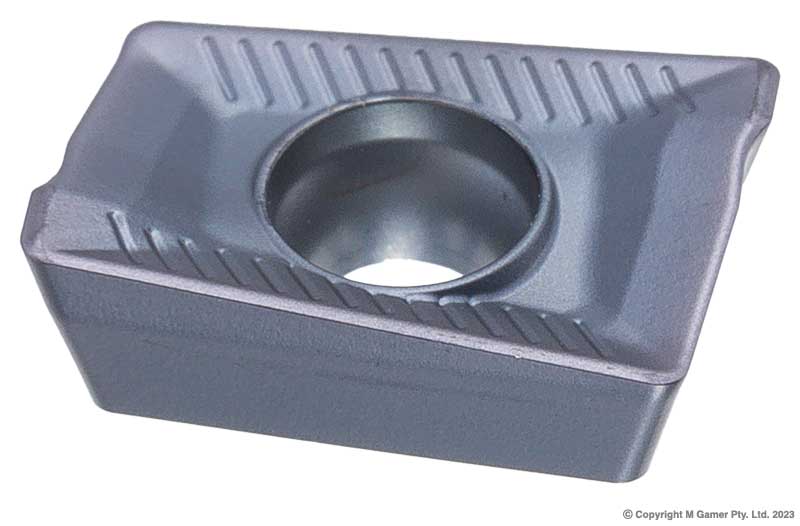

Harlingen APKT160408 16mm APKT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10
Harlingen APKT160408 16mm APKT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10. Cutting width 16 mm – point radius 0.8 mm – clearance angle 11 deg.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
- TiAlN Coated for longer tool life
| Brand | Harlingen |
|---|---|
| Product Type | Carbide Inserts |
| Measurement System | Metric |
| Size | 16 mm |
| Width | 16 mm |
| Thickness | 4.76 mm |
| Pack Type | Multi pack |
| Weight | 0.09 kg |
| Finish | TiAlN Coated |
| Cross Reference | Gamer: APKT160408 | Barcode: 9346967107576 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family TiAlN Coated for longer tool life |
The APKT160408 is a 16mm APKT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
Made of micro-grain carbide with TiAlN coating
Suited to semi-finishing of steel
Sold in packs of 10
- Cutting Width: 16 mm
- Point Radius: 0.8 mm
- Clearance Angle: 11 deg
- Thickness: 4.76 mm
- Finish: TiAlN
- ISO: APKT160408
Manufactured by Harlingen and imported into Australia by Gamer.
