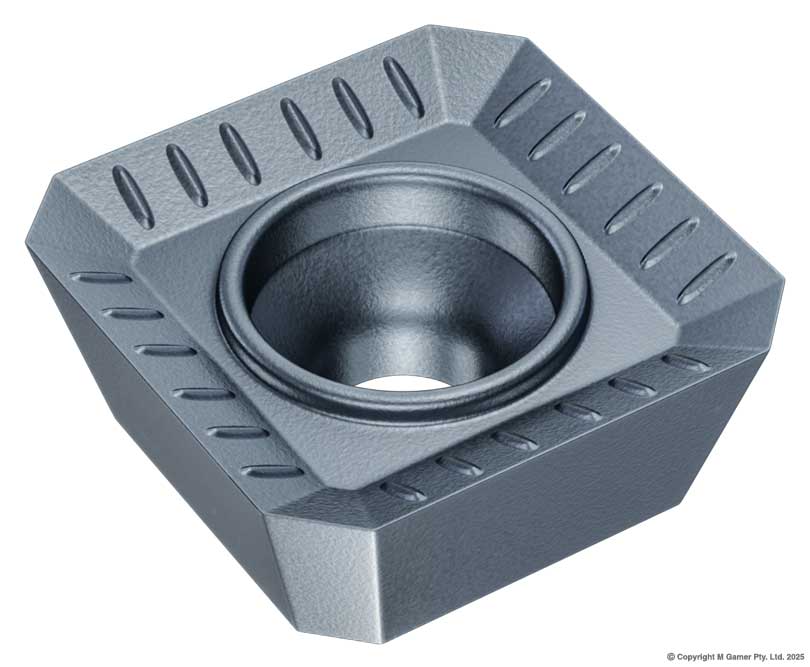

Harlingen SEMT1204 Solid Carbide Parallelogram Inserts – APKT160408PDTR
Harlingen SEMT1204 Solid Carbide Parallelogram Inserts – APKT160408PDTR. Insert shape 90 deg Square – cutting width 12 mm – point radius 0.4.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
| Brand | Harlingen |
|---|---|
| Product Type | Carbide Inserts |
| Measurement System | Metric |
| Width | 12 mm |
| Thickness | 4.67 mm |
| Cross Reference | Gamer: SEMT1204 | Barcode: 9346967109655 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family |
The SEMT1204 is a Solid Carbide Parallelogram Inserts – APKT160408PDTR.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
Made of micro-grain carbide with TiAlN coating
Suited to cast iron, general purpose steel and stainless steel
Sold in packs of 10
- Insert Shape: 90 deg Square
- Cutting Width: 12 mm
- Point Radius: 0.4
- Clearance Angle: 20 deg
- Thickness: 4.67 mm
- Retainer: Single Chamfered Thoughole clamp
- Tolerance: +.002 – 0.004
Manufactured by Harlingen and imported into Australia by Gamer.
