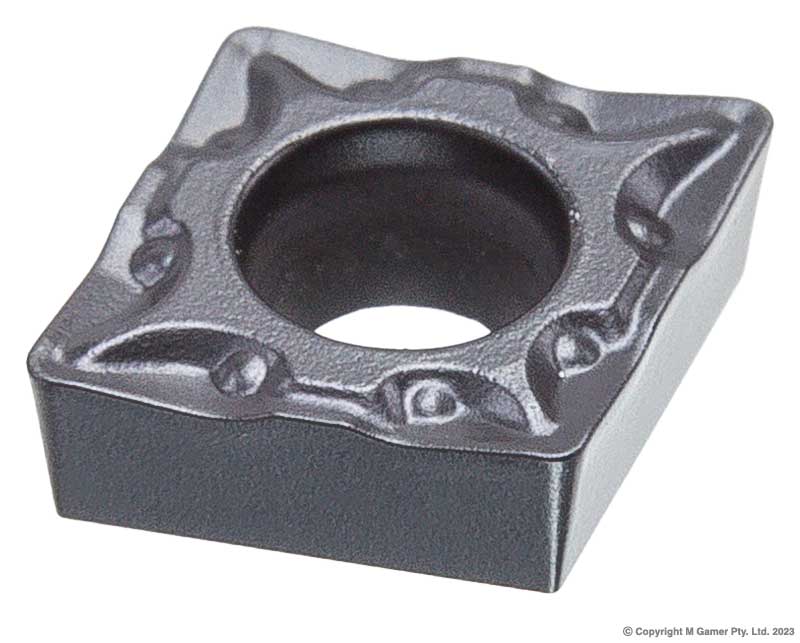

Harlingen CCMT060204 6mm CCMT TiAlN Micro - Grain Carbide Semi - Finishing Insert - Pack of 10
CCMT060204

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen CCMT060204 6mm CCMT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10

Part Number: CCMT060204
Width 6 mm

Harlingen CCMT060204 6mm CCMT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10. Cutting width 6 mm – point radius 0.4 mm – clearance angle 7 deg.

Qty:
  • Boring bars handle internal turning
  • Coated carbide suits steel and stainless
  • Left and right hand holders available
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Replaceable inserts instead of regrinding tools
  • TiAlN Coated for longer tool life
Brand

Harlingen
Product Type

Carbide Inserts
Measurement System

Metric
Size

6 mm
Width

6 mm
Thickness

2 mm
Pack Type

Multi pack
Weight

0.03 kg
Finish

TiAlN Coated
Cross Reference Gamer: CCMT060204 | Barcode: 9346967106692
Features & Benefits Boring bars handle internal turning
Coated carbide suits steel and stainless
Left and right hand holders available
Manufactured by Harlingen and imported into Australia by Gamer
Replaceable inserts instead of regrinding tools
TiAlN Coated for longer tool life

The CCMT060204 is a 6mm CCMT TiAlN Micro – Grain Carbide Semi – Finishing Insert – Pack of 10.

Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.

Made of micro-grain carbide with TiAlN coating

Suited to semi-finishing of steel

Sold in packs of 10

  • Cutting Width: 6 mm
  • Point Radius: 0.4 mm
  • Clearance Angle: 7 deg
  • Thickness: 2 mm
  • Finish: TiAlN
  • ISO: CCMT060204

Manufactured by Harlingen and imported into Australia by Gamer.
