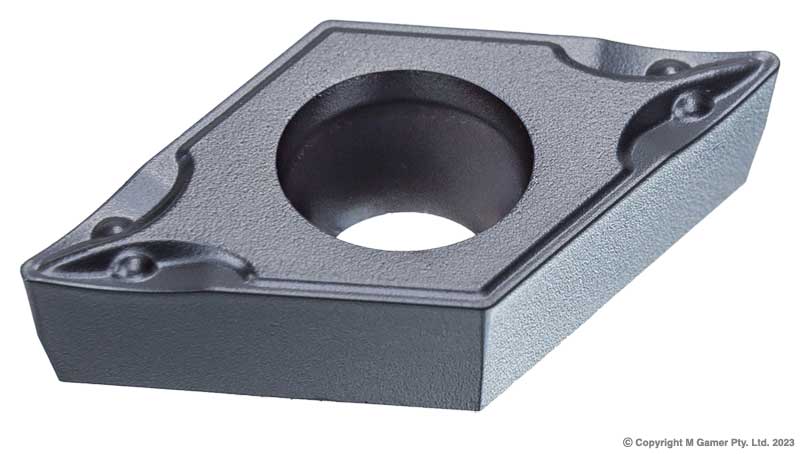

Harlingen DCMT070204 TiAlN Micro - Grain Carbide Semi - Finishing 7mm DCMT Inserts
DCMT070204

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen DCMT070204 TiAlN Micro – Grain Carbide Semi – Finishing 7mm DCMT Inserts

Part Number: DCMT070204
Width 7 mm

Harlingen DCMT070204 TiAlN Micro – Grain Carbide Semi – Finishing 7mm DCMT Inserts. Shape 55 deg Diamond – clearance angle 7 deg – point radius 0.4.

Qty:
  • Boring bars handle internal turning
  • Coated carbide suits steel and stainless
  • Left and right hand holders available
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Replaceable inserts instead of regrinding tools
Brand

Harlingen
Product Type

Carbide Inserts
Measurement System

Metric
Width

7 mm
Thickness

2.36 mm
Weight

0.03 kg
Cross Reference Gamer: DCMT070204 | Barcode: 9346967107583
Features & Benefits Boring bars handle internal turning
Coated carbide suits steel and stainless
Left and right hand holders available
Manufactured by Harlingen and imported into Australia by Gamer
Replaceable inserts instead of regrinding tools

The DCMT070204 is a TiAlN Micro – Grain Carbide Semi – Finishing 7mm DCMT Inserts.

Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.

Suited to semi-finishing of general purpose steel.

Cutting Speed: 220-400 m/min

Feed per Revolution: 0.08-0.23 mm

Depth of Cut: 0.25-3.0 mm

GRADE: HC2115

  • Shape: 55 deg Diamond
  • Clearance Angle: 7 deg
  • Point Radius: 0.4
  • Cutting Width: 7 mm
  • Thickness: 2.36 mm
  • Tolerance: +.002 – 0.004

Manufactured by Harlingen and imported into Australia by Gamer.
