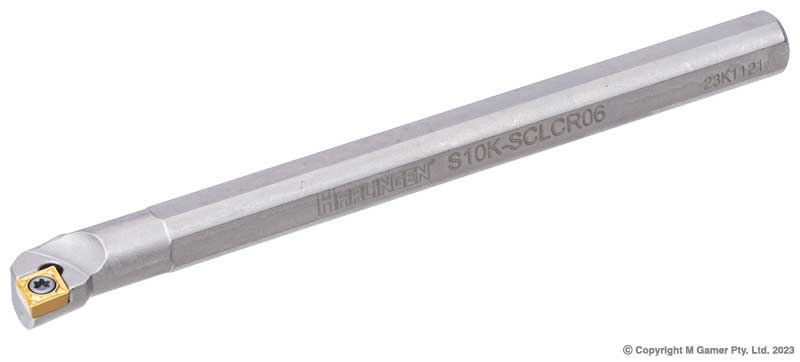

Harlingen H-221-10-003 10mm Right Handed Positive Rake CCMT Boring Bar
H-221-10-003

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen H-221-10-003 10mm Right Handed Positive Rake CCMT Boring Bar

Part Number: H-221-10-003

Harlingen H-221-10-003 10mm Right Handed Positive Rake CCMT Boring Bar. Insert CCMT0602** – retainer Screw – rake angle 0 deg.

Qty:
  • Boring bars handle internal turning
  • Coated carbide suits steel and stainless
  • Left and right hand holders available
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Replaceable inserts instead of regrinding tools
Brand

Harlingen
Product Type

Right Hand Boring Bar
Measurement System

Metric
Size

10 mm
Length

125 mm
Shank Diameter

10 mm
Cross Reference Gamer: H-221-10-003
Features & Benefits Boring bars handle internal turning
Coated carbide suits steel and stainless
Left and right hand holders available
Manufactured by Harlingen and imported into Australia by Gamer
Replaceable inserts instead of regrinding tools

The H-221-10-003 is a 10mm Right Handed Positive Rake CCMT Boring Bar.

Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.

Corrosion resistant nickel plating

One insert included

All spare parts available

  • Insert: CCMT0602**
  • Retainer: Screw
  • Rake Angle: 0 deg
  • Lead Angle: 95 deg
  • Min. Dia.: 13 mm
  • Shank Width: 9 mm
  • Shank Dia.: 10 mm
  • Length: 125 mm
  • ISO: S10KSCLCR06

Manufactured by Harlingen and imported into Australia by Gamer.
