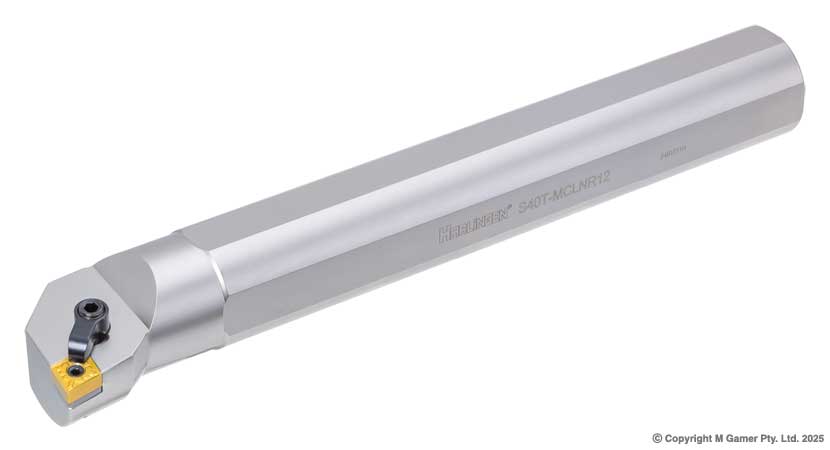

Harlingen S40T-MCLNR12 40mm Right Handed Negative Rake CNMG Boring Bar
S40T-MCLNR12

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen S40T-MCLNR12 40mm Right Handed Negative Rake CNMG Boring Bar

Part Number: S40T-MCLNR12

Harlingen S40T-MCLNR12 40mm Right Handed Negative Rake CNMG Boring Bar. Insert CNMG1204** – retainer Through-hole & Top clamp – rake angle -5 deg.

Qty:
  • Boring bars handle internal turning
  • Coated carbide suits steel and stainless
  • Left and right hand holders available
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Replaceable inserts instead of regrinding tools
Brand

Harlingen
Product Type

Right Hand Boring Bar
Measurement System

Metric
Size

40 mm
Length

300 mm
Weight

2.84 kg
Shank Diameter

40 mm
Cross Reference Gamer: S40T-MCLNR12 | Barcode: 9346967111580
Features & Benefits Boring bars handle internal turning
Coated carbide suits steel and stainless
Left and right hand holders available
Manufactured by Harlingen and imported into Australia by Gamer
Replaceable inserts instead of regrinding tools

The S40T-MCLNR12 is a 40mm Right Handed Negative Rake CNMG Boring Bar.

Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.

Top clamp and pin retains insert for heavy duty applications

Corrosion resistant nickel plating

One insert included

All spare parts available

  • Insert: CNMG1204**
  • Retainer: Through-hole & Top clamp
  • Rake Angle: -5 deg
  • Lead Angle: 95 deg
  • Min. Dia.: 50 mm
  • Shank Width: 37 mm
  • Shank Dia.: 40 mm
  • Length: 300 mm
  • ISO: S40TMCLNR12

Manufactured by Harlingen and imported into Australia by Gamer.
