Images are for illustrative purposes only. Actual product may vary.

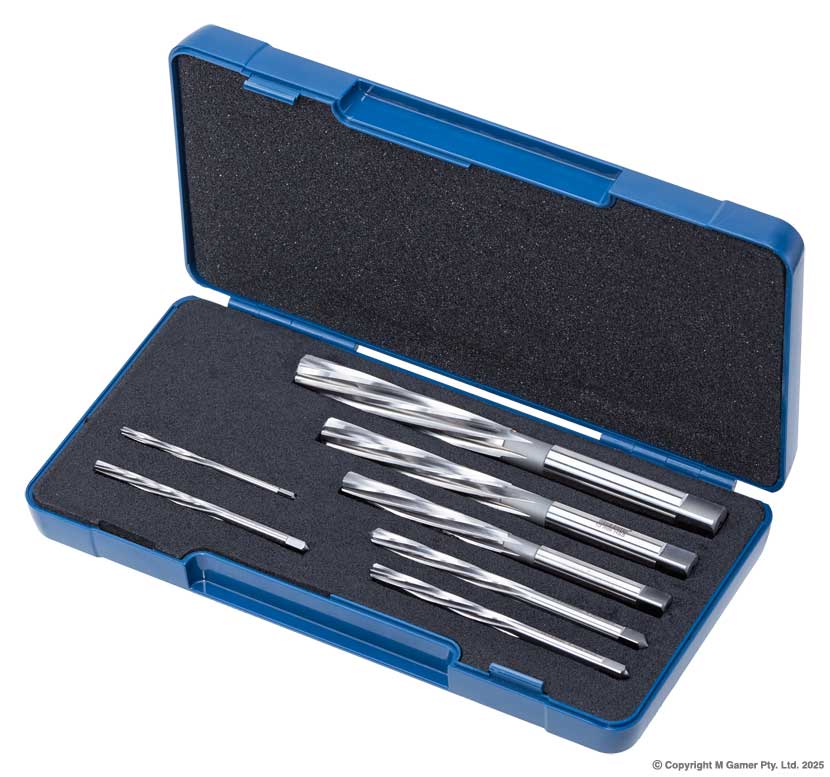

Harlingen H-532-12-1S1 HSS Hand Reamer Set – 3-12mm
Harlingen H-532-12-1S1 HSS Hand Reamer Set – 3-12mm. Flute length 31 mm – length 62 mm.
Product successfully added to the Quote List
- Cobalt and coated grades cut tougher metals
- Covers drilling stepping reaming and countersinking
- Manufactured by Harlingen and imported into Australia by Gamer
- Reamers finish a hole to size
- Step drills size sheet holes without changes
| Brand | Harlingen |
|---|---|
| Product Type | Reamers |
| Measurement System | Metric |
| Length | 62 mm |
| Pack Type | Assortment pack |
| Cross Reference | Gamer: H-532-12-1S1 |
| Features & Benefits | Cobalt and coated grades cut tougher metals Covers drilling stepping reaming and countersinking Manufactured by Harlingen and imported into Australia by Gamer Reamers finish a hole to size Step drills size sheet holes without changes |
The H-532-12-1S1 is a HSS Hand Reamer Set – 3-12mm.
Hole making starts with a twist drill and rarely finishes there. Step drills open and enlarge holes in sheet without a pilot change, countersinks cut the recess a flush screw head needs, and reamers bring a drilled hole to a precise finished size and surface.
Spiral flute reamers suitable for both blind and through-hole operations or where cross-hole or keyways are present
Fully ground surfaces for increased chip flow in softer materials such as aluminium, wood and plastic.
Meets DIN212 standard
Spiral flute reamers suitable for both blind and through-hole operations or where cross-hole or keyways are present
Features a straight shank with square drive with cutting geometry optimised for use with hand taps or reamer wrenches
Right hand cutting direction
Starting taper promotes controlled cutting initiation
- Flute Length: 31 mm
- Length: 62 mm
- 7 piece set includes counterbores:
- 3 mm Reamer
- 4 mm Reamer
- 5 mm Reamer
- 6 mm Reamer
- 7 mm Reamer
- 8 mm Reamer
- 9 mm Reamer
- 10 mm Reamer
- 11 mm Reamer
- 12 mm Reamer
Manufactured by Harlingen and imported into Australia by Gamer.
