Harlingen S12M-STFCR11 12mm Right Handed Positive Rake TCMT Boring Bar
S12M-STFCR11

Images are for illustrative purposes only. Actual product may vary.

Harlingen

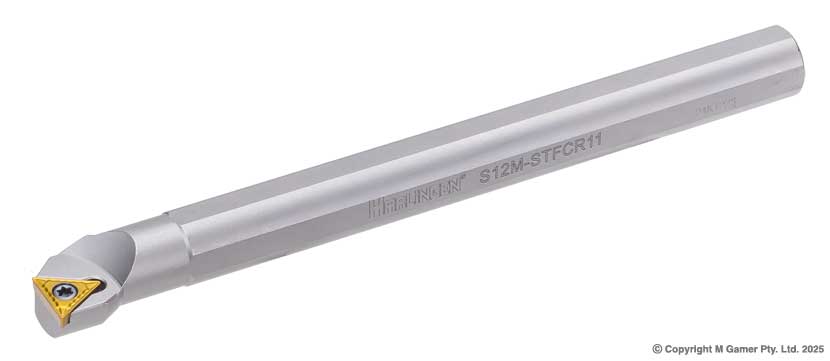

Harlingen S12M-STFCR11 12mm Right Handed Positive Rake TCMT Boring Bar

Part Number: S12M-STFCR11

Harlingen S12M-STFCR11 12mm Right Handed Positive Rake TCMT Boring Bar. Insert TCMT1102** – retainer Screw (L60 – M2.5×5.2) – rake angle 0 deg.

Qty:
  • Enlarges and trues existing bores
  • Indexable tips swap out when dull
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Rake options suit soft or tough metals
  • Shank sizes match common toolposts
Brand

Harlingen
Product Type

Right Hand Boring Bar
Measurement System

Metric
Size

12 mm
Length

150 mm
Shank Diameter

12 mm
Cross Reference Gamer: S12M-STFCR11 | Barcode: 9346967114819
Features & Benefits Enlarges and trues existing bores
Indexable tips swap out when dull
Manufactured by Harlingen and imported into Australia by Gamer
Rake options suit soft or tough metals
Shank sizes match common toolposts

The S12M-STFCR11 is a 12mm Right Handed Positive Rake TCMT Boring Bar.

Enlarging and truing an existing hole on a lathe is done with a bar that reaches inside the bore and cuts on the way out. An indexable carbide insert at the tip is replaced when it dulls, and rake geometry is chosen to suit free cutting alloys or tougher steels.

Corrosion resistant nickel plating

One insert included with each tool holder

All spare parts available

  • Insert: TCMT1102**
  • Retainer: Screw (L60 – M2.5×5.2)
  • Rake Angle: 0 deg
  • Lead Angle: 90 deg
  • Min. Dia.: 16 mm
  • Shank Width: 11 mm
  • Shank Dia.: 12 mm
  • Length: 150 mm
  • ISO: S12MSTFCR11

Manufactured by Harlingen and imported into Australia by Gamer.
