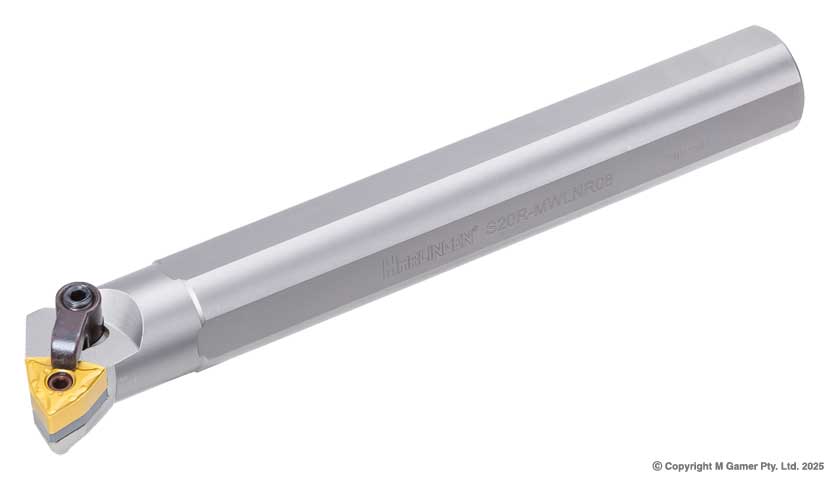

Harlingen S20R-MWLNR08 20mm Right Handed Negative Rake WNMG Boring Bar
S20R-MWLNR08

Images are for illustrative purposes only. Actual product may vary.

Harlingen

Harlingen S20R-MWLNR08 20mm Right Handed Negative Rake WNMG Boring Bar

Part Number: S20R-MWLNR08

Harlingen S20R-MWLNR08 20mm Right Handed Negative Rake WNMG Boring Bar. Insert WNMG0804** – retainer Through-hole & Top clamp – rake angle -5 deg.

Qty:
  • Enlarges and trues existing bores
  • Indexable tips swap out when dull
  • Manufactured by Harlingen and imported into Australia by Gamer
  • Rake options suit soft or tough metals
  • Shank sizes match common toolposts
Brand

Harlingen
Product Type

Right Hand Boring Bar
Measurement System

Metric
Size

20 mm
Length

200 mm
Shank Diameter

20 mm
Cross Reference Gamer: S20R-MWLNR08 | Barcode: 9346967113324
Features & Benefits Enlarges and trues existing bores
Indexable tips swap out when dull
Manufactured by Harlingen and imported into Australia by Gamer
Rake options suit soft or tough metals
Shank sizes match common toolposts

The S20R-MWLNR08 is a 20mm Right Handed Negative Rake WNMG Boring Bar.

Enlarging and truing an existing hole on a lathe is done with a bar that reaches inside the bore and cuts on the way out. An indexable carbide insert at the tip is replaced when it dulls, and rake geometry is chosen to suit free cutting alloys or tougher steels.

Corrosion resistant nickel plating

One insert included

  • Insert: WNMG0804**
  • Retainer: Through-hole & Top clamp
  • Rake Angle: -5 deg
  • Lead Angle: 90 deg
  • Min. Dia.: 12 mm
  • Shank Width: 18 mm
  • Shank Dia.: 20 mm
  • Length: 200 mm
  • ISO: S20RMWLNR08

Manufactured by Harlingen and imported into Australia by Gamer.
