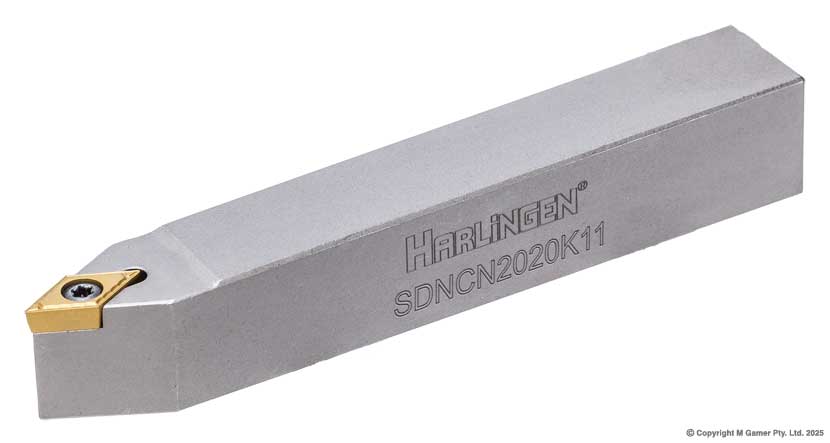

Harlingen SDNCN2020K11 20mm Neutral DCMT Indexible Tool Holder
Harlingen SDNCN2020K11 20mm Neutral DCMT Indexible Tool Holder. Insert DCMT1T3** – retainer Screw (L60 – M3.5×8.8) – rake angle 0 deg.
Product successfully added to the Quote List
- Boring bars handle internal turning
- Coated carbide suits steel and stainless
- Left and right hand holders available
- Manufactured by Harlingen and imported into Australia by Gamer
- Replaceable inserts instead of regrinding tools
| Brand | Harlingen |
|---|---|
| Product Type | Lathe Tool Holder |
| Measurement System | Metric |
| Size | 20 mm |
| Length | 125 mm |
| Cross Reference | Gamer: SDNCN2020K11 | Barcode: 9346967114918 |
| Features & Benefits | Boring bars handle internal turning Coated carbide suits steel and stainless Left and right hand holders available Manufactured by Harlingen and imported into Australia by Gamer Replaceable inserts instead of regrinding tools |
The SDNCN2020K11 is a 20mm Neutral DCMT Indexible Tool Holder.
Indexable turning tools clamp a replaceable carbide insert in a steel shank, so a worn edge is rotated or swapped rather than reground. Holders come in left and right hand for facing and turning in either direction, with boring bars for internal work and inserts shaped for roughing, finishing and thread forms.
Corrosion resistant nickel plating
One insert included with each tool holder
All spare parts available
- Insert: DCMT1T3**
- Retainer: Screw (L60 – M3.5×8.8)
- Rake Angle: 0 deg
- Lead Angle: 62 deg
- Shank Width: 20 mm
- Shank Height: 20 mm
- Length: 125 mm
- Head Width: 10 mm
- Head Length: 22 mm
- ISO: SDNCN2020K11
Manufactured by Harlingen and imported into Australia by Gamer.
