IKO TLA3020Z Needle Roller Bearing 30x37x20mm (Open End)
IKO TLA3020Z drawn cup needle roller bearing, open end. Bore 30mm, OD 37mm, width 20mm.
Product successfully added to the Quote List
- Drawn cup (shell type) needle roller bearing - thin-walled deep-drawn outer shell forms the raceway
- High radial load capacity from the needle roller complement
- IKO (Nippon Thompson) precision manufacture to JIS standards
- Lowest sectional height of any needle roller bearing for a very compact arrangement
- Maximum operating temperature approximately 140C
- Open ends (standard type) with a narrow flange gap to retain grease and exclude contaminants
- Press-fit into the housing bore - no axial location fixtures required
- Use with a hardened shaft or IRT 2520-1 inner ring as the inner raceway
| Brand | IKO |
|---|---|
| Bearing Type | Drawn Cup Needle Roller Bearing |
| Series | TLA |
| Measurement System | Metric |
| Inner Diameter (Bore) | 30 mm |
| Outer Diameter | 37 mm |
| Width | 20 mm |
| Configuration | Open End |
| Material | Chrome Bearing Steel |
| Dynamic Load Rating (Cr) | 18600 N (18.6 kN) |
| Static Load Rating (C₀) | 35100 N (35.1 kN) |
| Limiting Speed (Grease) | 7200 rpm |
| Limiting Speed (Oil) | 12000 rpm |
| Compatible Inner Ring | IRT2520-1 |
| Weight | 0.038 kg |
| Features & Benefits | Drawn cup (shell type) needle roller bearing - thin-walled deep-drawn outer shell forms the raceway High radial load capacity from the needle roller complement IKO (Nippon Thompson) precision manufacture to JIS standards Lowest sectional height of any needle roller bearing for a very compact arrangement Maximum operating temperature approximately 140C Open ends (standard type) with a narrow flange gap to retain grease and exclude contaminants Press-fit into the housing bore - no axial location fixtures required Use with a hardened shaft or IRT 2520-1 inner ring as the inner raceway |
The IKO TLA3020Z is a drawn cup (shell type) needle roller bearing with open ends, for a 30mm shaft (metric series). Its thin-walled, deep-drawn outer shell forms the outer raceway, giving the lowest sectional height of any needle bearing while carrying high radial loads in a compact, economical package. Boundary dimensions 30 x 37 x 20mm.
The open-end (standard) type has a narrow flange gap that helps retain grease and exclude contamination. The bearing is press-fitted into the housing bore, so no axial location fixtures are needed; maximum operating temperature approximately 140C. Use with a hardened shaft or the IRT 2520-1 inner ring as the inner raceway. Manufactured by IKO (Nippon Thompson), Japan.
Related Products
-
TLA3020UU

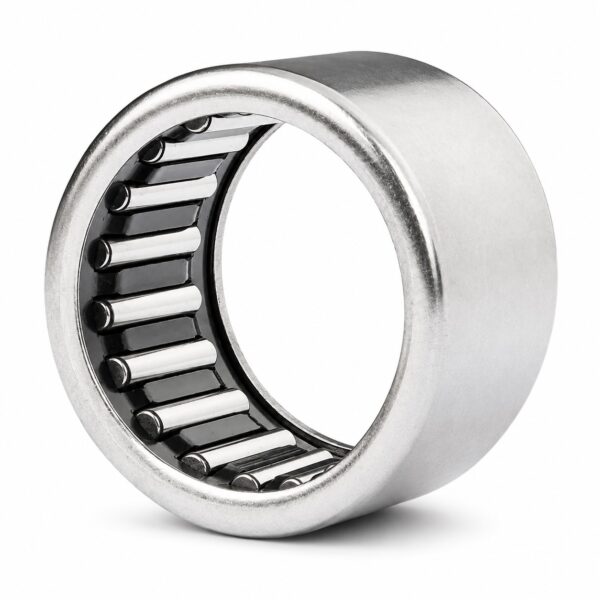

IKO TLA3020UU Needle Roller Bearing 30x37x20mm (Open End)
30 mm × 37 mm × 20 mm
Product successfully added to the Quote List
-
TLAM3020
IKO TLAM3020 Needle Roller Bearing 30x37x20mm (Closed End)
30 mm × 37 mm × 20 mm
Product successfully added to the Quote List
-
BK3020

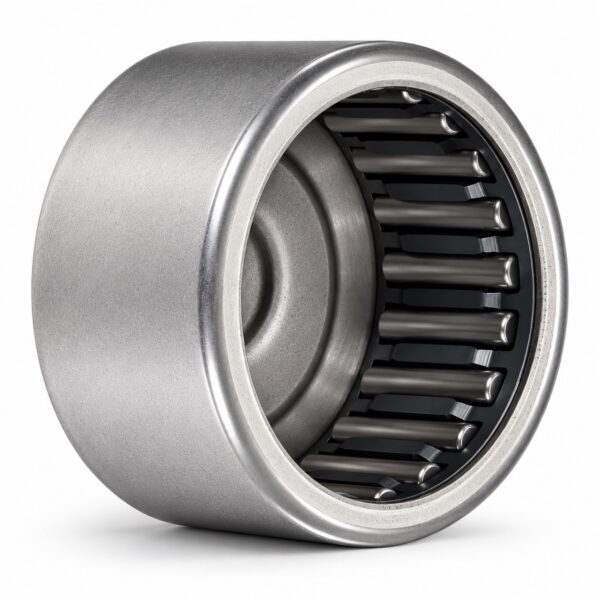

KOYO BK3020 Needle Roller Bearing 30x37x20mm (Closed End)
30 mm × 37 mm × 20 mm
Product successfully added to the Quote List
-
HK3020

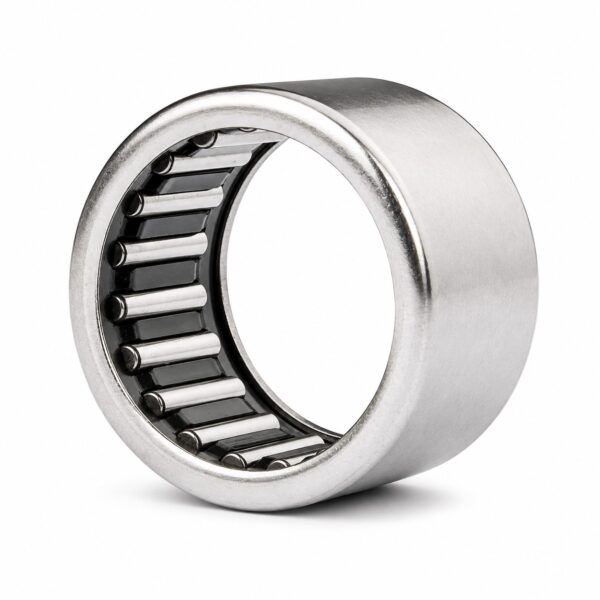

KOYO HK3020 Needle Roller Bearing 30x37x20mm (Open End)
