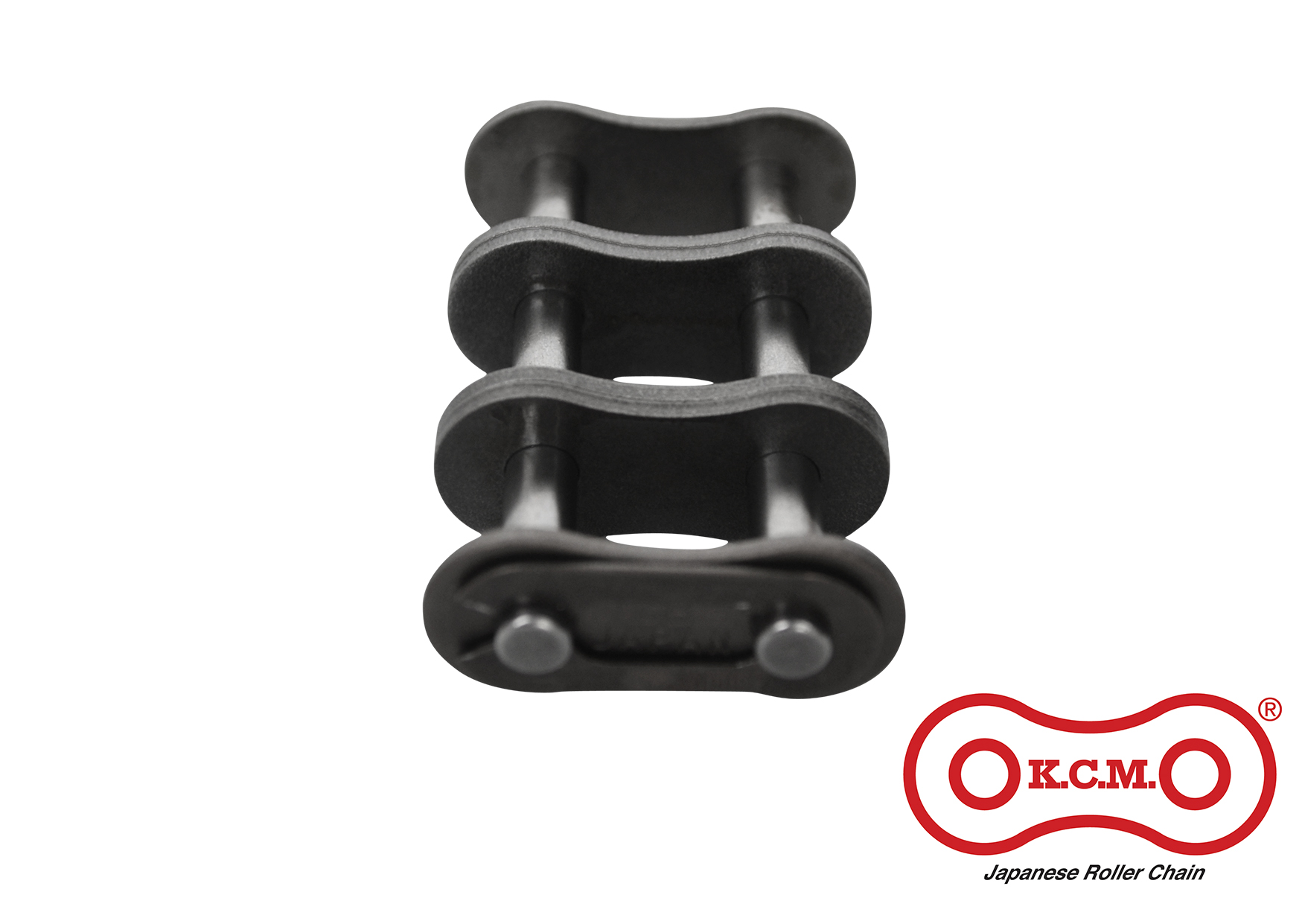

KCM 10B-3CL BS Connecting Link – 5/8″ Pitch Triplex
KCM 10B-3CL BS connecting link. 5/8″ (15.88mm) pitch – triplex. 10.16mm roller diameter – 9.65mm width between inner plates. Sold each.
Product successfully added to the Quote List
- BS precision connecting link to ISO 606-B - 5/8" pitch (15.88mm)
- Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions
- Plate and pin dimensions match KCM 10B-3 chain exactly
- Sold each
- Standard link for joining or repairing a chain run
- Triplex - 3 strand construction
| Brand | KCM |
|---|---|
| Product Type | Connecting Link |
| Series | 10B |
| Configuration | Triplex |
| Pin Type | Standard |
| Pitch | 15.88 mm |
| Roller Diameter | 10.16 mm |
| Width | 9.65 mm |
| Cross Reference | ISO 606: 10B-3 | DIN 8187: 10B-3 | BS 228: 10B-3 | KCM: 10B-3CL/KCM |
| Features & Benefits | BS precision connecting link to ISO 606-B - 5/8" pitch (15.88mm) Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions Plate and pin dimensions match KCM 10B-3 chain exactly Sold each Standard link for joining or repairing a chain run Triplex - 3 strand construction |
The KCM 10B-3CL is a BS triplex precision connecting link with 5/8″ (15.88mm) pitch – 10.16mm roller diameter and 9.65mm width between inner plates. Pin diameter 5.08mm – plate thickness 1.5mm – plate height 14.6mm.
A connecting link joins the two ends of a chain to close the loop. The link plate and pin dimensions match the parent chain exactly – so the joint carries the same load and runs on the same sprocket without interference.
Please note: this connecting link is sold each. It suits KCM 10B-3 chain and any other BS chain of the same size.
Cross reference (guide only – verify pitch and dimensions before ordering):
- ISO 606: 10B-3
- DIN 8187: 10B-3
- BS 228: 10B-3
Manufactured by KCM in Japan and imported into Australia by Finer Power Transmissions.
