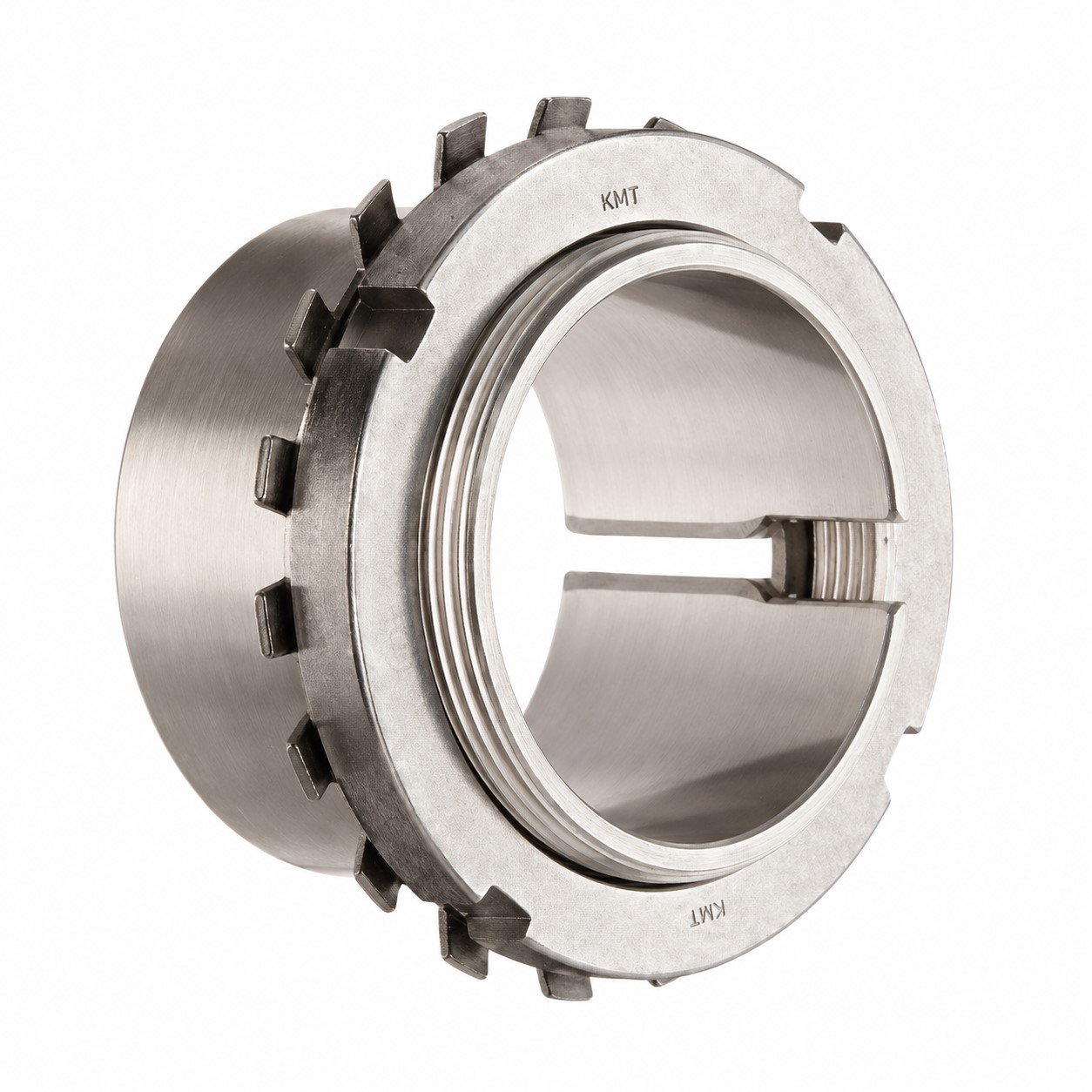

NBR H208 Adaptor Sleeve – 40mm Shaft
NBR H208 adaptor sleeve for a 40mm shaft. Matched lock nut KM08, tab washer MB08.
Product successfully added to the Quote List
- Economical way to locate self-aligning ball and spherical roller bearings
- Fits a 40mm shaft
- NBR economy range, imported by Finer Power Transmissions for Australia
- No shaft shoulder or machined seat required
- Secured with a matched lock nut (KM08) and tab washer (MB08)
- Tapered adaptor sleeve for mounting taper-bore bearings on a plain shaft
| Brand | NBR |
|---|---|
| Product Type | Adaptor Sleeve |
| Series | H2000 |
| Measurement System | Metric |
| Shaft Diameter | 40 mm |
| Outer Diameter | 58 mm |
| Width | 31 mm |
| Matched Lock Nut | KM08 |
| Matched Tab Washer | MB08 |
| Weight | 0.17 kg |
| Features & Benefits | Economical way to locate self-aligning ball and spherical roller bearings Fits a 40mm shaft NBR economy range, imported by Finer Power Transmissions for Australia No shaft shoulder or machined seat required Secured with a matched lock nut (KM08) and tab washer (MB08) Tapered adaptor sleeve for mounting taper-bore bearings on a plain shaft |
The NBR H208 is a tapered adaptor sleeve for mounting a taper-bore bearing onto a 40mm plain (unstepped) shaft. Sleeve bore 35, outside diameter 58mm, width 31mm.
The sleeve is driven up the shaft into the bearing’s tapered bore and secured with a matched lock nut (KM08) and tab washer (MB08), clamping the bearing without needing a shoulder or machined seat. This makes it a simple, economical way to locate self-aligning ball and spherical roller bearings.
Supplied under the NBR brand – an economy bearing and plain bearing range imported into Australia by Finer Power Transmissions.
