Images are for illustrative purposes only. Actual product may vary.

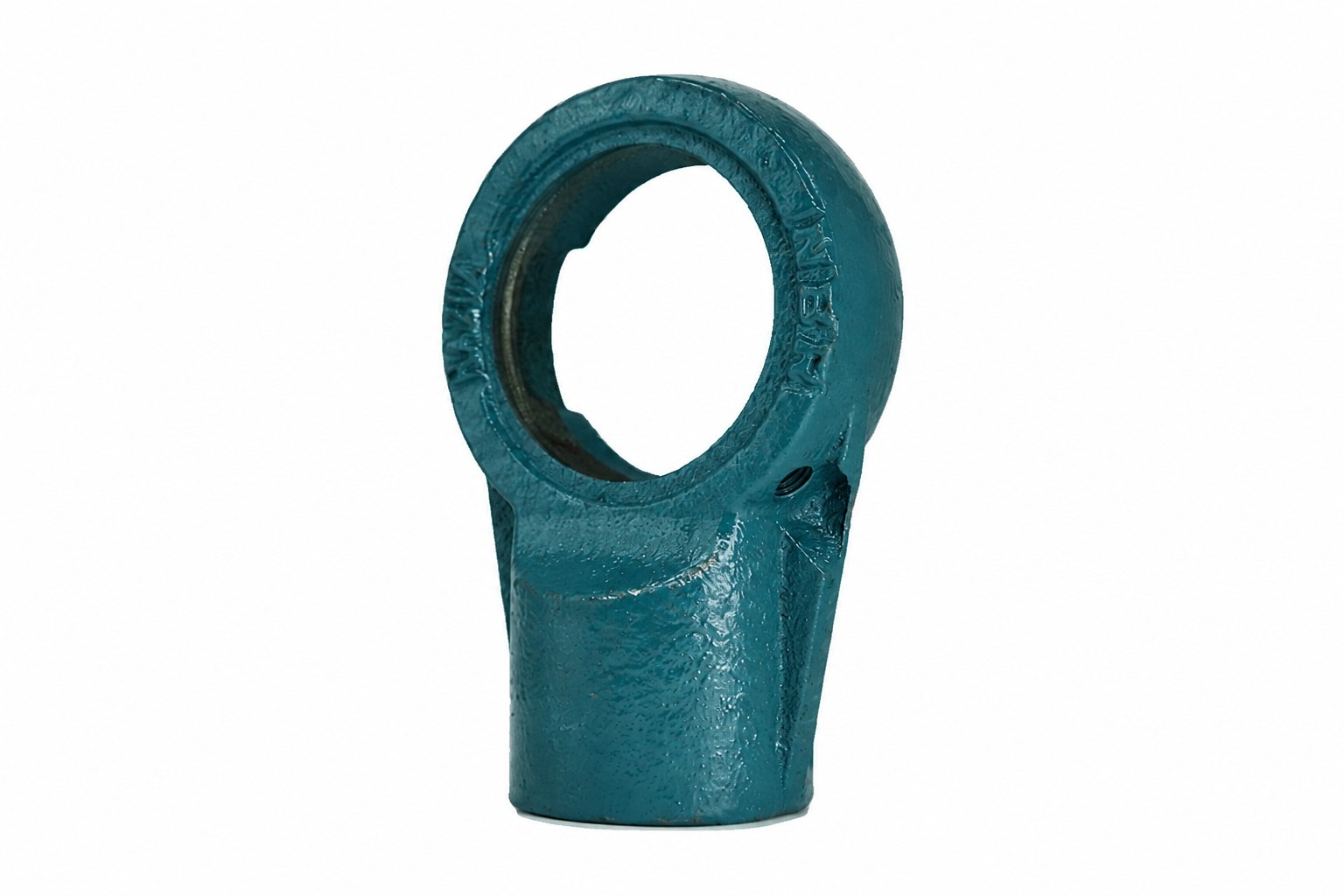

NBR HA209 Hanger Housing
NBR HA209 cast iron hanger (suspended) housing. Suits 45mm shaft. Thread PF 3/4, insert width 49.2mm.
Product successfully added to the Quote List
- Accepts NBR or standard insert bearings
- Cast iron hanger (suspended) housing
- Ideal for screw conveyors and overhead mounting
- NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
- Suspends the bearing from a threaded rod or bracket
| Brand | NBR |
|---|---|
| Bearing Type | Hanger Housing |
| Series | HA200 |
| Housing Type | Hanger (Suspended) |
| Material | Cast Iron |
| Shaft Size | 45 mm |
| Overall Height (H) | 136 mm |
| Length (L) | 108 mm |
| Bolt Centres (J) | 82 mm |
| Width (A) | 48 mm |
| Height (H2) | 21 mm |
| Mounting Thread | PF 3/4 |
| Insert Width (Bi) | 49.2 mm |
| Set Screw (S) | 19 mm |
| Features & Benefits | Accepts NBR or standard insert bearings Cast iron hanger (suspended) housing Ideal for screw conveyors and overhead mounting NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand Suspends the bearing from a threaded rod or bracket |
NBR HA209 Hanger Housing
The NBR HA209 is a cast iron hanger housing for a 45mm shaft bearing, with a PF 3/4 mounting thread, overall height 136mm, length 108mm, bolt centres 82mm, insert width 49.2mm.
Hanger housings suspend the bearing from a threaded rod or bracket, commonly used in screw conveyors and overhead applications. Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.
