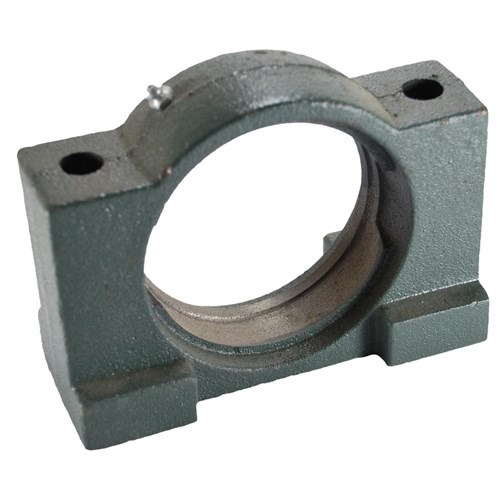

NBR SBH206 Heavy 2-Bolt Saw Bench Housing
NBR SBH206 heavy-duty cast iron 2-bolt saw bench housing. Suits 30mm shaft. Centre height 38.1mm, length 108mm.
Product successfully added to the Quote List
- Accepts NBR insert bearings
- Heavy-duty cast iron 2-bolt saw bench housing
- NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand
- Reinforced for saw benches and high-load drives
- Supplied as housing only, insert ordered separately
| Brand | NBR |
|---|---|
| Bearing Type | Pillow Block Housing |
| Series | SBH200 |
| Housing Type | Saw Bench (Heavy 2-Bolt) |
| Material | Cast Iron |
| Shaft Size | 30 mm |
| Height to Centre (H) | 38.1 mm |
| Overall Length (A) | 108 mm |
| Bolt Hole Centres (e) | 83 mm |
| Base Width (B) | 44 mm |
| Overall Width (W) | 78 mm |
| Bolt Size | M10 |
| Features & Benefits | Accepts NBR insert bearings Heavy-duty cast iron 2-bolt saw bench housing NBR economy brand, imported by Finer Power Transmissions for Australia & New Zealand Reinforced for saw benches and high-load drives Supplied as housing only, insert ordered separately |
NBR SBH206 Heavy 2-Bolt Saw Bench Housing
The NBR SBH206 is a heavy-duty cast iron 2-bolt saw bench (pillow block) housing for a 30mm shaft bearing. Bolt size M10.
Supplied as a housing only – the insert bearing is ordered separately. Supplied under the NBR brand – a cost-effective mounted bearing range imported into Australia and New Zealand by Finer Power Transmissions – offering reliable quality for industrial, agricultural and washdown applications.
