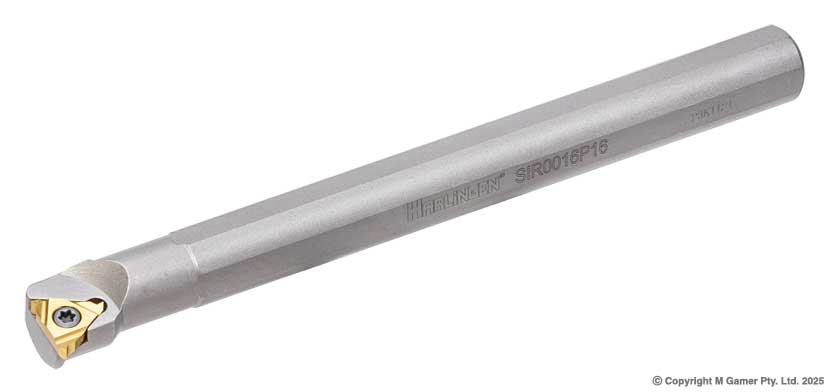

Harlingen SIR0016P16 22NR/L 22NR Indexable Nickel Plated Treading Boring Bar
Harlingen SIR0016P16 22NR/L 22NR Indexable Nickel Plated Treading Boring Bar. Insert 22NR/L** – retainer Screw (L60 – M3.5×8.8) – head length 32 mm.
Product successfully added to the Quote List
- Enlarges and trues existing bores
- Indexable tips swap out when dull
- Manufactured by Harlingen and imported into Australia by Gamer
- Rake options suit soft or tough metals
- Shank sizes match common toolposts
| Brand | Harlingen |
|---|---|
| Product Type | Right Hand Boring Bar |
| Measurement System | Metric |
| Length | 170 mm |
| Weight | 0.28 kg |
| Shank Diameter | 15.5 mm |
| Cross Reference | Gamer: SIR0016P16 | Barcode: 9346967110507 |
| Features & Benefits | Enlarges and trues existing bores Indexable tips swap out when dull Manufactured by Harlingen and imported into Australia by Gamer Rake options suit soft or tough metals Shank sizes match common toolposts |
The SIR0016P16 is a 22NR/L 22NR Indexable Nickel Plated Treading Boring Bar.
Enlarging and truing an existing hole on a lathe is done with a bar that reaches inside the bore and cuts on the way out. An indexable carbide insert at the tip is replaced when it dulls, and rake geometry is chosen to suit free cutting alloys or tougher steels.
Corrosion resistant nickel plating
One insert included
- Insert: 22NR/L**
- Retainer: Screw (L60 – M3.5×8.8)
- Head Length: 32 mm
- Min. Dia.: 20 mm
- Shank Width: 15 mm
- Shank Height: 15 mm
- Shank Dia.: 15.5 mm
- Length: 170 mm
- ISO: SIR0016P16
Manufactured by Harlingen and imported into Australia by Gamer.
