Images are for illustrative purposes only. Actual product may vary.

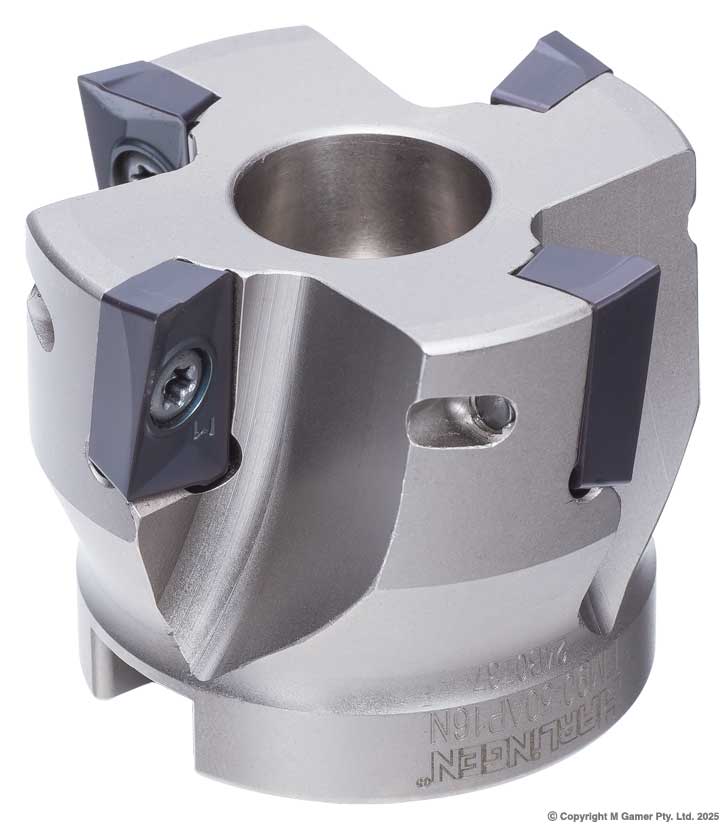

Harlingen H-231-51-002 50mm 90deg Indexable Face Mills For APKT1604 Inserts
Harlingen H-231-51-002 50mm 90deg Indexable Face Mills For APKT1604 Inserts. Diameter 50 mm – height 40 mm – hole dia 22 mm.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
| Brand | Harlingen |
|---|---|
| Product Type | Face Mills |
| Measurement System | Metric |
| Size | 50 mm |
| Height | 40 mm |
| Diameter | 50 mm |
| Weight | 0.39 kg |
| Cross Reference | Gamer: H-231-51-002 | Barcode: 9346967109624 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family |
The H-231-51-002 is a 50mm 90deg Indexable Face Mills For APKT1604 Inserts.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
High precision and high stock removal rates.
Swiss SFS high strength insert screws.
High grade alloy steel (HRC45-HRC48).
Suitable for light to medium square shoulder milling.
Less than 0.02 mm radial and
axial run-out.
Includes 4 x APKT1604 Inserts.
- Diameter: 50 mm
- Height: 40 mm
- Hole Dia.: 22 mm
- Cut Depth: 6.5 mm
- Keyway: 10.4 mm
- No. of Pockets: 4
- Weight: 0.5 Kg
Manufactured by Harlingen and imported into Australia by Gamer.
