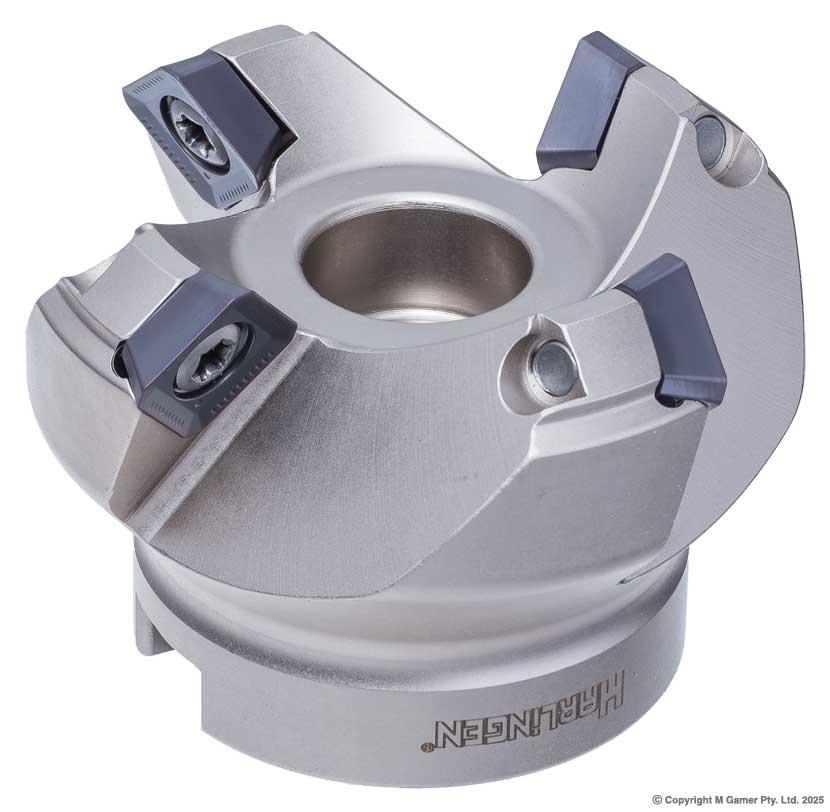

Harlingen H-231-56-001 45deg Indexable SEMT Nickel Plated Face Mill – 50mm
Harlingen H-231-56-001 45deg Indexable SEMT Nickel Plated Face Mill – 50mm. Insert SEMT1204 – cut dia, 50 mm – hole dia 22 mm.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
| Brand | Harlingen |
|---|---|
| Product Type | Face Mills |
| Measurement System | Metric |
| Height | 45 mm |
| Weight | 1.11 kg |
| Cross Reference | Gamer: H-231-56-001 | Barcode: 9346967110569 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family |
The H-231-56-001 is a 45deg Indexable SEMT Nickel Plated Face Mill – 50mm.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
Less than 0.02mm radial and axial run-out
Includes Swiss SFS high strength insert retaining screws
Made from HRC45-HRC48 hardened steel alloy
High stock removal rate on steel and cast iron
- Insert: SEMT1204
- Cut Dia,: 50 mm
- Hole Dia.: 22 mm
- Cut Depth: 6.5 mm
- Keyway: 10.4 mm
- Height: 45 mm
- No. of Pockets: 4
- Weight: 0.5 Kg
- ISO: FM4550SE12
Manufactured by Harlingen and imported into Australia by Gamer.
Related Products
-
H-231-51-002
Harlingen H-231-51-002 50mm 90deg Indexable Face Mills For APKT1604 Inserts
Product successfully added to the Quote List
-
H-231-51-005

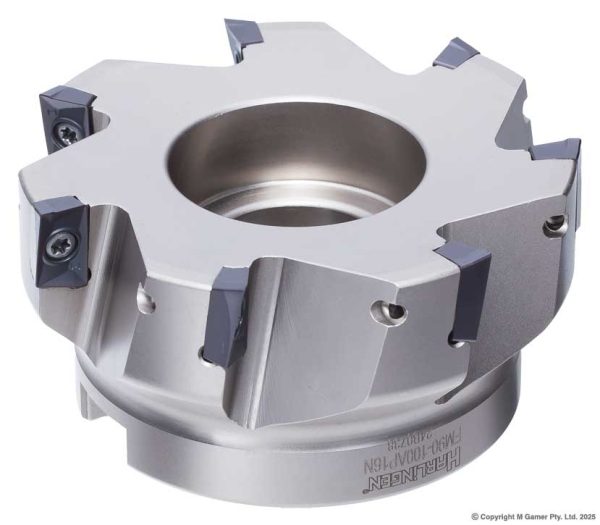

Harlingen H-231-51-005 100mm 90deg Indexable Face Mills For APKT1604 Inserts
