Harlingen H-231-51-005 100mm 90deg Indexable Face Mills For APKT1604 Inserts
Harlingen H-231-51-005 100mm 90deg Indexable Face Mills For APKT1604 Inserts. Diameter 100 mm – hole dia 32 mm – keyway 14.4 mm.
Product successfully added to the Quote List
- End mills suit side and slot work
- Face mills clear flat surfaces quickly
- Indexable inserts cut tool cost per edge
- Manufactured by Harlingen and imported into Australia by Gamer
- Slotting profiling and facing from one family
| Brand | Harlingen |
|---|---|
| Product Type | Face Mills |
| Measurement System | Metric |
| Size | 100 mm |
| Height | 50 mm |
| Diameter | 100 mm |
| Weight | 1.81 kg |
| Cross Reference | Gamer: H-231-51-005 | Barcode: 9346967109617 |
| Features & Benefits | End mills suit side and slot work Face mills clear flat surfaces quickly Indexable inserts cut tool cost per edge Manufactured by Harlingen and imported into Australia by Gamer Slotting profiling and facing from one family |
The H-231-51-005 is a 100mm 90deg Indexable Face Mills For APKT1604 Inserts.
Material is removed on a mill by a rotating cutter fed across the work, and the cutter type follows the job. End mills slot, profile and side cut, face mills sweep a flat surface in one pass with indexable inserts, and countersinks finish holes ready for screw heads.
High precision and high stock removal rates.
Swiss SFS high strength insert screws.
High grade alloy steel (HRC45-HRC48).
Suitable for light to medium square shoulder milling.
Less than 0.02 mm radial and
axial run-out.
Includes 7 x APKT1604 Inserts.
- Diameter: 100 mm
- Hole Dia.: 32 mm
- Keyway: 14.4 mm
- Height: 50 mm
- No. of Pockets: 7
- Weight: 1.8 Kg
Manufactured by Harlingen and imported into Australia by Gamer.
Related Products
-
H-231-51-002

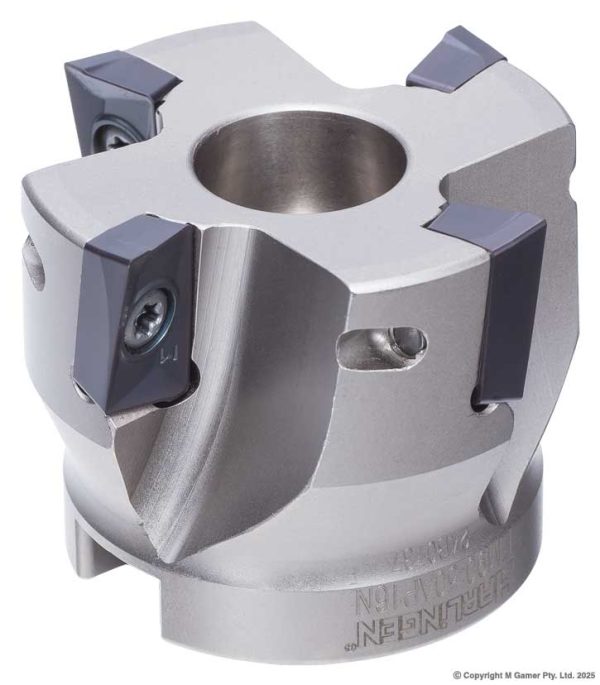

Harlingen H-231-51-002 50mm 90deg Indexable Face Mills For APKT1604 Inserts
Product successfully added to the Quote List
-
H-231-56-001
Harlingen H-231-56-001 45deg Indexable SEMT Nickel Plated Face Mill – 50mm
Product successfully added to the Quote List
-
H-231-56-003

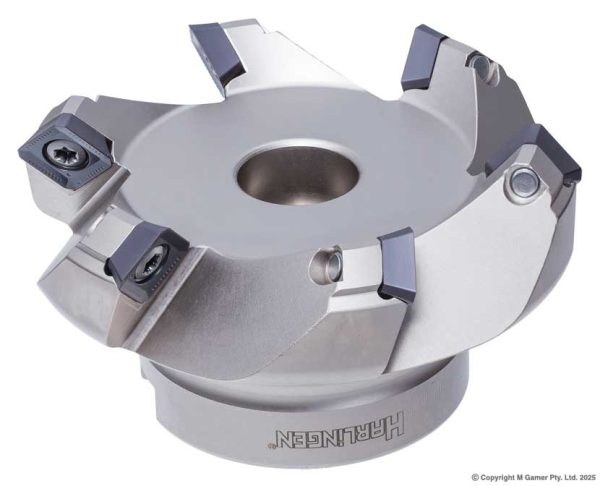

Harlingen H-231-56-003 45deg Indexable SEMT Nickel Plated Face Mill – 80mm
Product successfully added to the Quote List
-
H-231-56-004

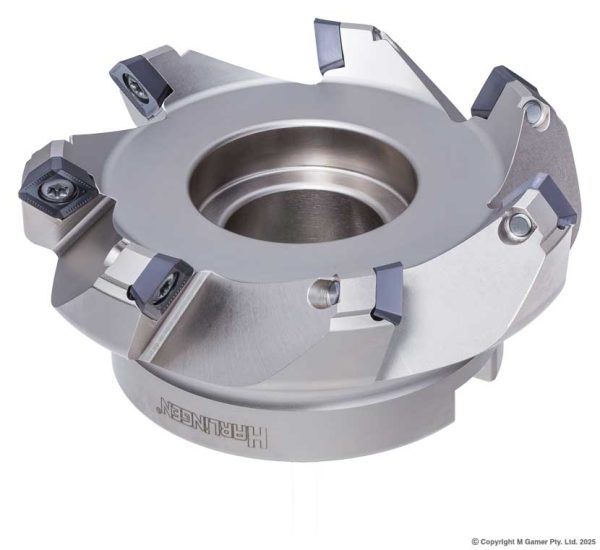

Harlingen H-231-56-004 45deg Indexable SEMT Nickel Plated Face Mill – 100mm
